Description
External multi-frequency GNSS debug board for receiving L1&L5 GPS, BeiDou B1&B2a&B3I, Galileo E1&E5a&E6 signals.
The multi-frequency antenna is designed for connection to Trimble, NovAtel, Leica, Topcon, Javad, South, Stonex, Hemisphere, ComNav and other geodetic GPS/GNSS receivers. Using debug UART interface it’s possible to measure different signal configurations:
- Signal strength
- Angle of arrival
- Noise to Signal rate
- RMS in mV in selected central frequency
Protection against dust, moisture, shock, falls and vibration, a wide range of operating temperatures will allow you to use product in the most adverse field conditions and on construction sites. The compact size and light weight of the antenna will allow you to include it as part of a base station, in marine and land surveys, monitoring of moving objects and in other applications related to the need for accurate determination of location and movement using satellite positioning technologies.
GPS debug board specifications:
- Received signals: L1&L5 GPS, BeiDou B1&B2a&B3I, Galileo E1&E5a&E6
- Operating frequencies: 1559 … 1616 MHz
- Polarization: right-hand circular (RHCP)
- Gain of the useful signal: minimum 40 dB
- Gain unevenness: +/- 2 dB
- Noise figure: 1.8 dB typical
- Supply voltage: from 12 to 24 V
- Current: less than 1000 mA

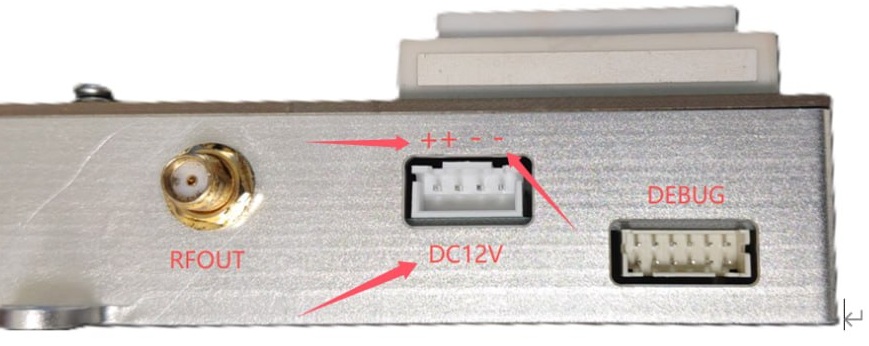

- Cable connector: UART poer
- RF cable connector: SMA-F
- Working temperature: -40 … +70° C
- Set: GNSS debug board (1 pcs); one power cable; one debug cable
